FTTH original ZXA10 C300 Gpon Epon OLT Equipment SFP Module

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $860.00
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 4 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ZTE, ZTE
Model Number:
ZXA10 C300 OLT, ZXA10 C300
Type:
OLT, OLT
No. of Fiber:
1
Use:
FTTH
Application:
FTTH FTTB FTTX Network, FTTH FTTB FTTX Network
Feature:
New original
use:
FTTH
PON:
GPON
Power supply:
AC&DC
PON Capacity:
8-224Ports
Warranty:
1 year
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Selling Units: Single item
Single gross weight: 28KG
Port
Shenzhen , Hong Kong, Guangzhou, Dongguan
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 4 To be negotiated
Product Description

FTTH original ZXA10 C300 Gpon Epon OLT Equipment SFP Module

The ZXA10 C300 is the industry’s first large-capacity FTTx central office access platform oriented to next-generation PON evolution. It offers ultrafast bandwidth, meets full-service access and multiple scenario requirements, and provides carrier-class QoS and security guarantee. KEY Features *Unified platform for GPON,XG-PON1 and P2P *Small size and compact design, flexible network and fast deployment *10U frame with 14 service slots(19 inches), compatible with ZXA10 C300 line cards *Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc *Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression. *High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/UAPS/STP/ERPS for uplink *Service differentiation: Comprehensive QoSmechanisms for voice, video and high speed Internet services. *Support DC input redundancy, Support AC power supply * Support 1:1 protection for PON interfaces * Support 1:1 protection for SW (core card) card Support 1588V2 and Synchronous Ethernet * Support embedded OTDR in SFP


Technical specifications
ZXA10 C300 has two sizes of frames: 21 inch frame and 19 inch frame.

ITEM
Specifications
capacity
21inch:Up to 16 service board
19inch: Up to 14 service board
Uplink interface
GE/10GE/E1/T1/STM-1/STM-4
Service interface
EPON/GPON/P2P/10G-EPON/XG-PON1
EPON:8/16pon board
GPON:8/16pon board
10G-EPON:8/16 pon board
10G-GPON:8/16 PON board
Maximum splitter ratio
EPON 1:64;GPON 1:128;10G-EPON/XG-PON1 1:256
Transmission distance
>20KM
Size
21 inch:449.2mm (H) * 535mm (L) * 270mm (W)
19 inch:443.7mm (H * 482.6mm (L) * 270mm (W)
Voltage
DC:-48 V±20%,-60V±20%
Working temperature
-25°C ~ 55°C
Working humidity
5% ~95%, non condensation

PON Features

•GPON compliant with ITU G.984.x •P2P compliant with ITU G.985/G.986 •XG-PON1 compliant with ITU G.987.x and G.988 •Support 1:128 optical split ratio for xPON •Support OLS (Optical Laser Supervising ) •Max logical reach: 60km •Max physical reach: 20km •Max link difference: 20km •High-efficient DBA: NSR-DBA,SR-DBA •Synchronous Ethernet •GPON Transceiver power: Class B+ or class C+ •XG PON1 Transceiver power: Class N1 and N2a •Type B and type C optical uplink protection •Support FEC •Support AES128 •Support SCB •GPON MCM(Multi-Copy Multicast) •Support 1550nm for third party CATV broadcasting L2/L3Features •4K VLAN •1:1/N:1 VLAN •802.1ad, SVLAN, Selective QinQ, VLAN stacking •Line-rate forwarding •STP/RSTP/MSTP compliant to IEEE 802.1d/802.1w/802.1s •UAPS/EAPS/LACP protection •Link aggregation IEEE 802.3ad •L3 routing: •12K IPv4 routing forwarding entries •IPv4 and IPv6 statistic routing •Multicast –IPTV •1K Multicast groups •IGMP Snooping and proxy (v1/v2/3) •MLD V1/ V2,snooping/proxy •MVLAN: 256 •Channel Access Control (CAC), Preview (PRV) and Call Detail Record (CDR) for IPTV •Less than 50ms channel zapping delay QoS •8 queues per port •Queue & scheduling mechanism: SP, WRR, SP+WRR •IPv4 DSCP Diffserv •Stream classification, rate limiting, shaping and priority setting •Traffic statistics •WRED and triple color •SLA: CIR, PIR, EIR Security •L2-L4 ACL •IP and MAC source guard •Resistance against DOS attacks •MAC/IP anti-spoofing (MAC binding, IP binding, DHCP snooping) •Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression •MAC address number limit based on VLAN or GEM-port •Port mirroring •User port identification such as PPPOE+ and DHCP Option 82

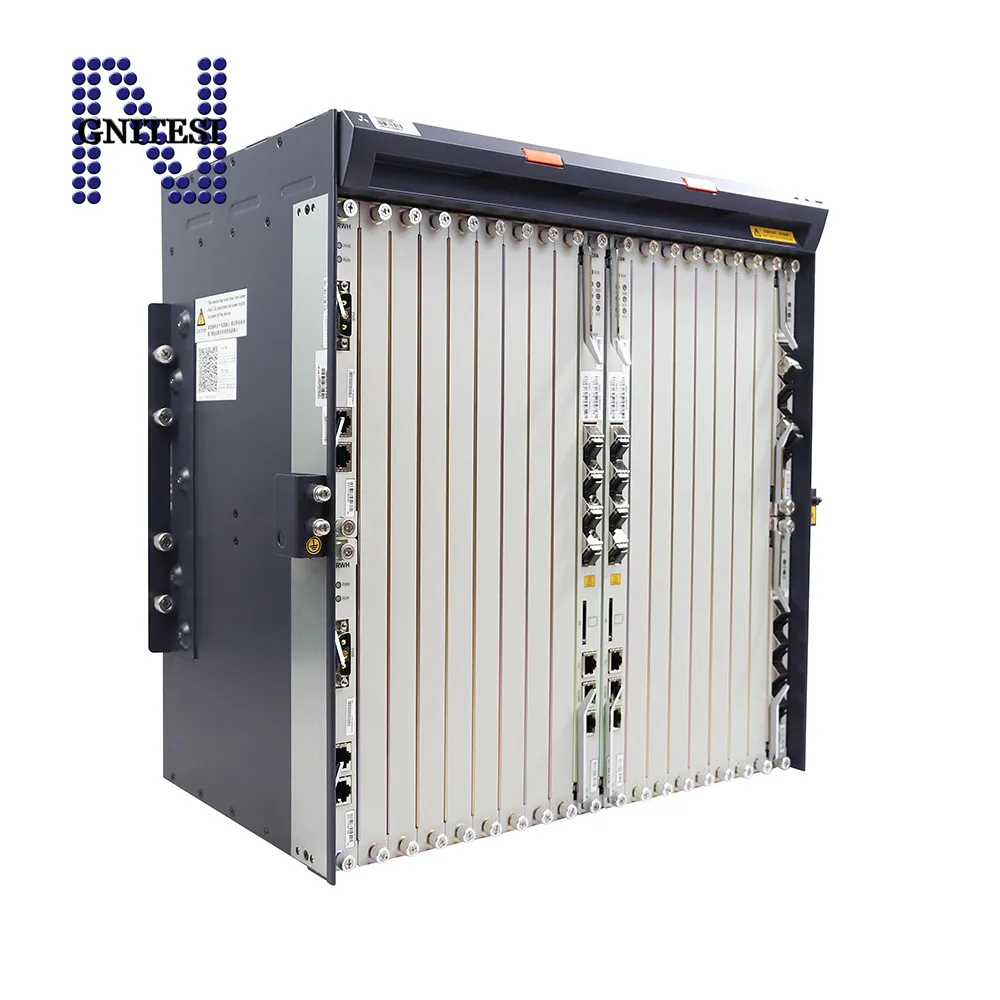

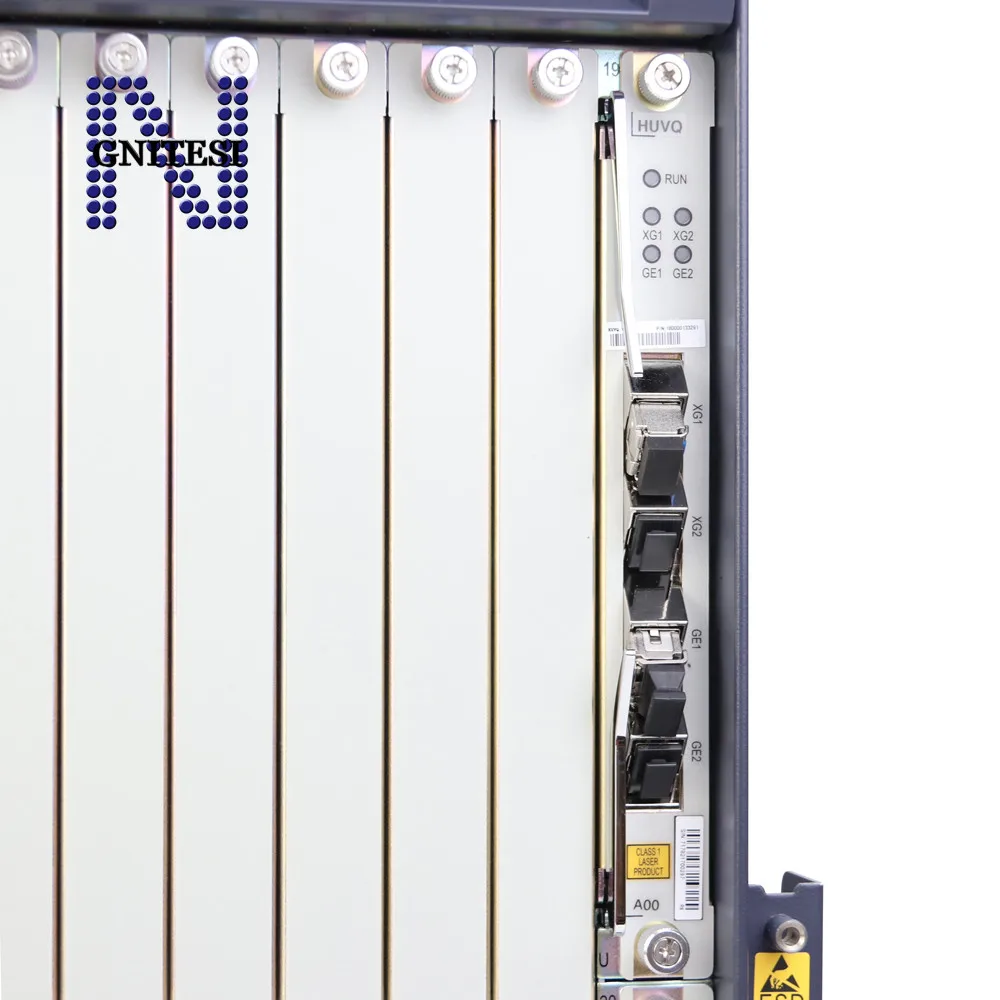

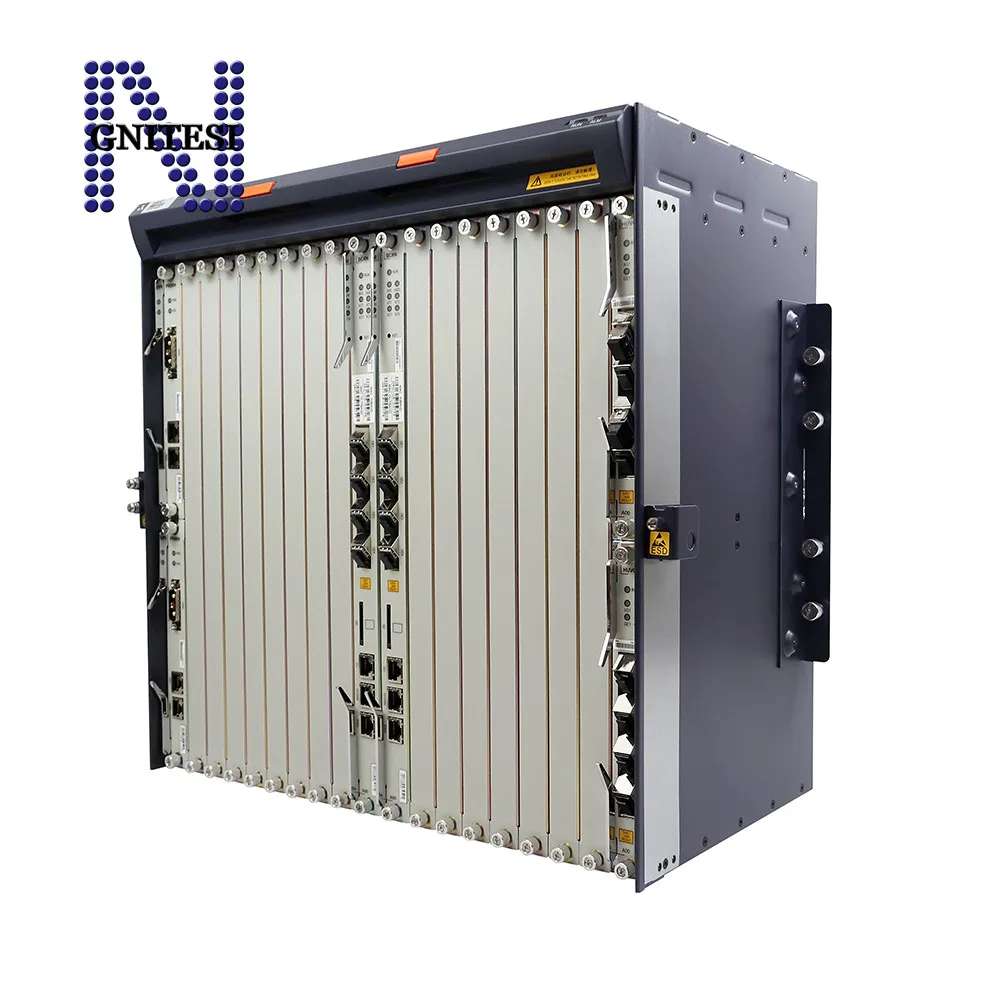

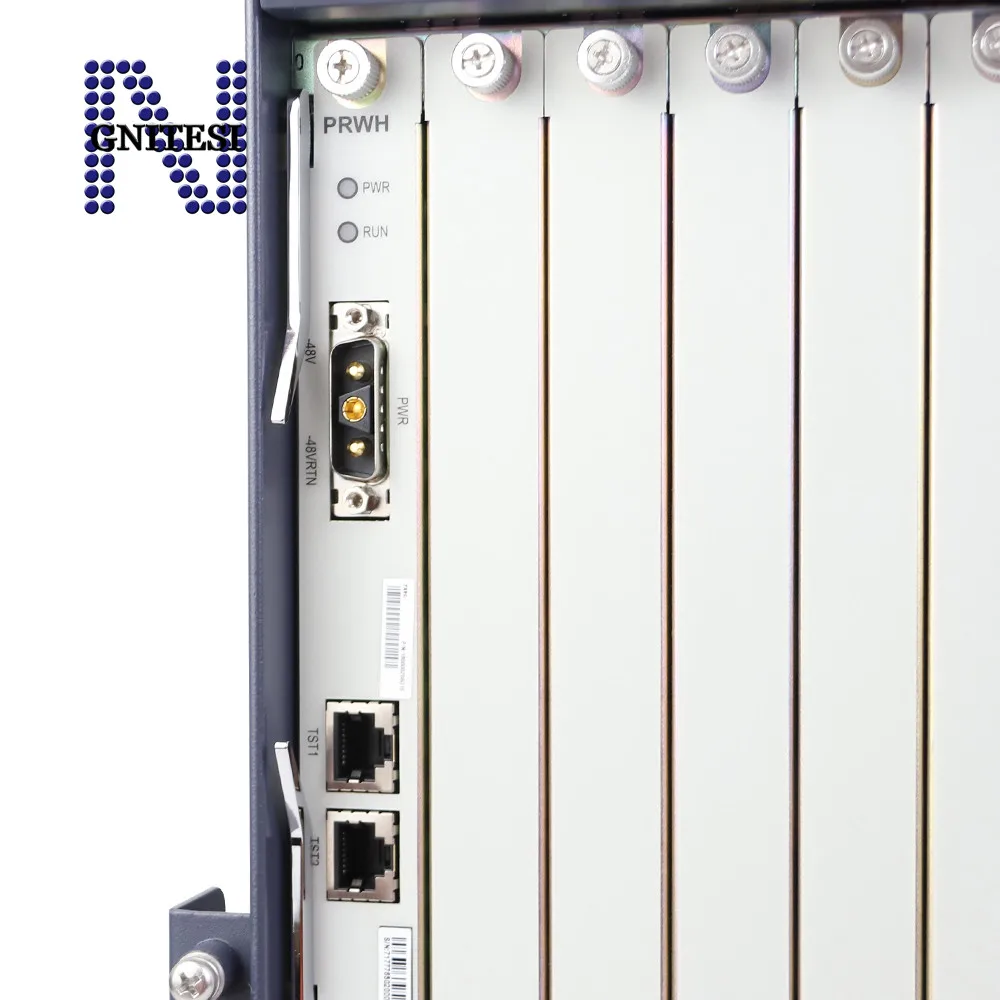

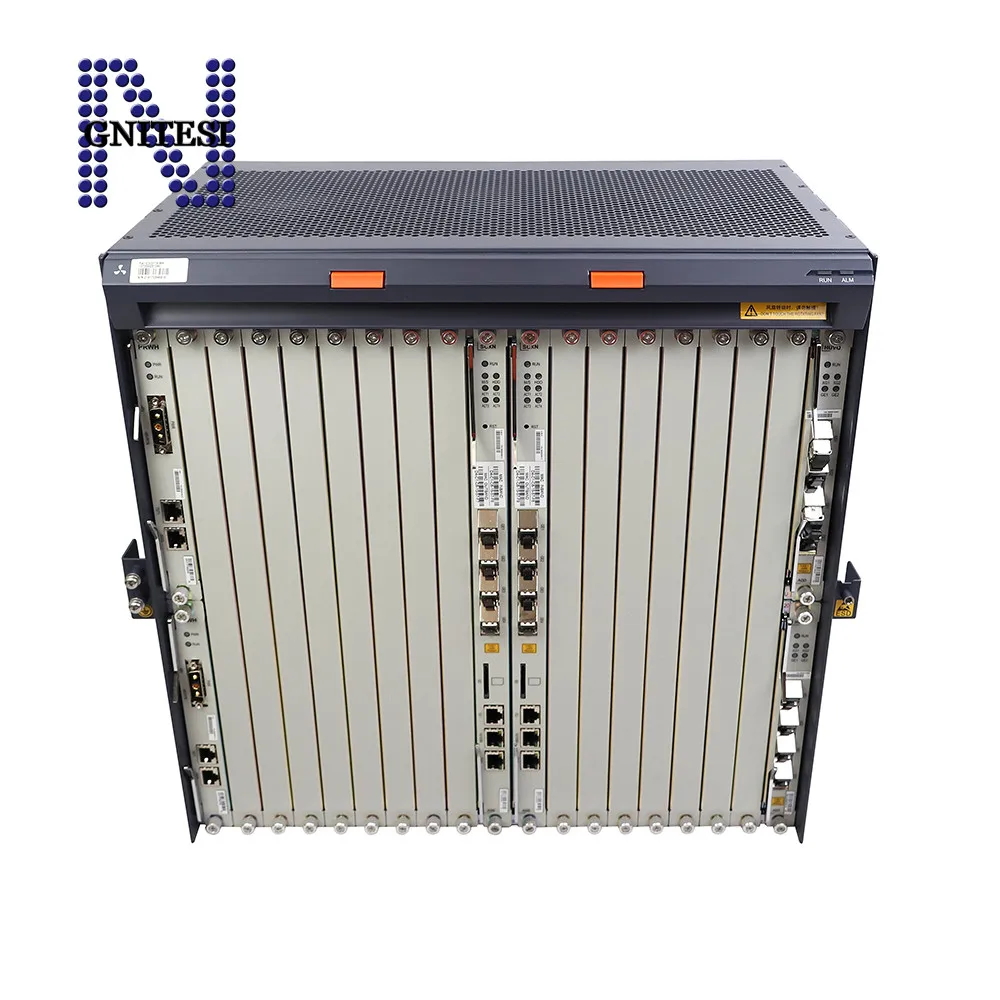

Detailed Images
Other products
Our Company
Packing

Packing

Original packaging, one pcs one box.

Delivery

We will deliver the goods as soon as possible within 5-7 days.

FAQ

Q:CAN WE GET A SAMPLE?

A:Yes,but we need to charge for samples.We Will retum sample fee in later order.

Q: CAN YOU OFFER A BETTER PRICE? AND DISCOUNT?

A: Yes,Powerlink doesnt have MOQ,but different qty has different price.

Q: CAN YOU TAKE CARE FOR THE SHIPMENT?

A: We will organize and scheduie all shipping to you office if you want.

Q: HOW ABOUT THE PAYMENT ITEM?

A: T/T,PAYPAL,western union.

Q:LEAD TIME?

A: Sample order,3-6 works days.buik order,7-30 work days after geting depos.

Q:WHAT IS YOUR WARRANTY PERIOD?

A: Warranty period is 12 months.

     this warranty does not cover damage caused by man-made damage, improper care,improper use, negligence.normal       wear and tear,and force majeure such as natural disasters,earthquakes,fires,etc.
